It is mainly composed of four parts: frame mechanism, splitting mechanism, pneumatic control system and electrical control system. * Sheet size: Min size: 1500 *1200mm (Single Side loading) * Max loading size: 2600 x 2000 mm * Glass sheet thickness: 3 ~ 19mm * Working absorption depth: 700 mm * X-axis walking speed: 5-25m/min (adjustable) * Y-axis walking speed: 8-12 m/min (adjustable) * Conveying speed: 5-25m/min (adjustable) * Number of flip arms: 8 arms (double side loading) * Number of single arm suckers: three * Loading type: Double side loading * Working cycle: 45S (15S for each additional position) * Installation power supply: AC380V/50HZ (special circumstances can be adjusted according to customer requirements) * Installation total power: 5-10 kw * Compressed air: 0.6-0.8 Mpa; * Vacuum: -50-99 Kpa (adjustable according to glass thickness) * Working table height: 900 + 20mm * Machine size: 4650 x 2980 x 900mm
Glass Cutting Machine for Glass Breaking Loading Function
| Paquete: | Wooden Cases Package and Container Transfer |
|---|---|
| transporte: | Ocean |
| Capacidad de suministro: | 15 sets per month |
| Hafen: | Qingdao Port |
Descripción del producto
High Quality Automatic CNC Glass Cutting Machine for Glass Breaking and Loading Function
Product Description
CNC Intelligent Automatic High Speed Glass Cutting Line
This Automatic Glass Cutting Line has been comprehensively upgraded by means of introduction of European leading technology, world newest tech and process to eliminate the insufficient performances, incomplete functions and unstable operation from domestic glass loader, moreover,through the precise racks, slide-rails, servo motors and pneumatic elements, it achieves the long-term stable accuracy and fast running with the newest American Galil control system, it features even faster operation, higher safety, higher efficiency, more stability and better accuracy: with the photoelectric positioning, it facilitates the simple and precise operation and prominent labor saving.
ONE:
CY-CNC-6133（G）Brief Introduction of Automatic Glass Cutting line：
CY-SP-6133 (G) Brief introduction of automatic glass loading table
1．Basic working principle
2．Equipment Composition
3．Detailed working steps
4．Mechanical configuration
5．Electrical configuration
6．Technical parameters
7．Technical description
TWO:
CY-CNC-6133（G）Brief introduction of automatic glass cutting table
8．Basic working principle；
9．Equipment Composition；
10．Detailed working steps；
11．Equipment Performance
12．Mechanical configuration
13．Electrical configuration
14．Technical parameters
15．Software
THREE:
CY-BP-6133 Brief introduction of air-floating breaking table (Type 2+1)
1．Equipment Composition
2．Electrical part
3．Mechanical part
4．Technical parameters
FOUR:
Remarks
FIVE:
Accessories
Advantages & Features

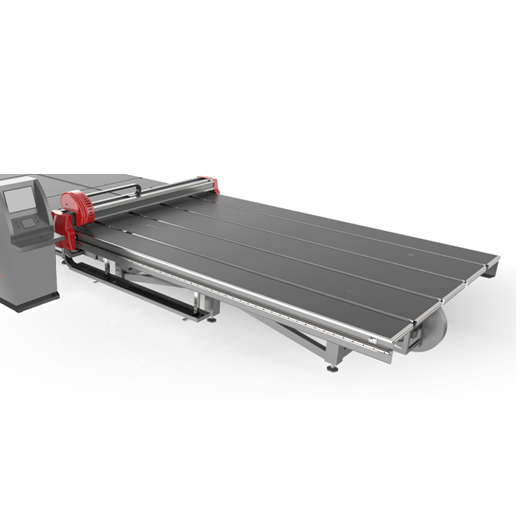

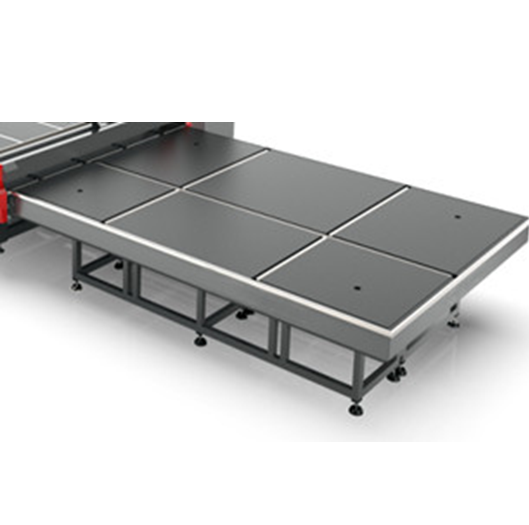

Air-floated Breaking Table for Glass Cutting
Fully Automatic CNC Glass Cutting Machine

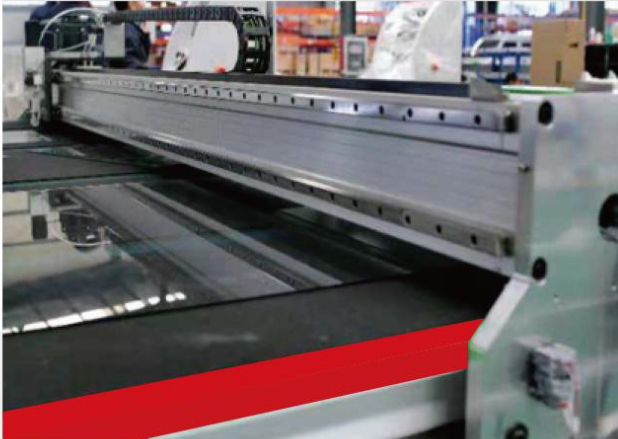

Its working principle is to convey the cut glass by conveying belt to worktable, automatically input the position of glass through photoelectric scanning system, and then the cutting head with diamond wheel on the cutter holder moves along X and Y directions respectively by program control,cutc the sheet. CNC motion controller is used in the control part of the machine, and advanced AC servo motor is used in the drive part. * Max size: 2600*2000mm * Thickness:3～19mm * Cutting accuracy:±15 * Cutting accuracy of special-shaped glass:±20 * Cutting speed:0-200m/min * Conveying speed:0-25m/min * Machine size:9600X2800X900±20mm * Working table height:900mm±20mm * Weight:2600kg * Total power of equipment:5-8kw

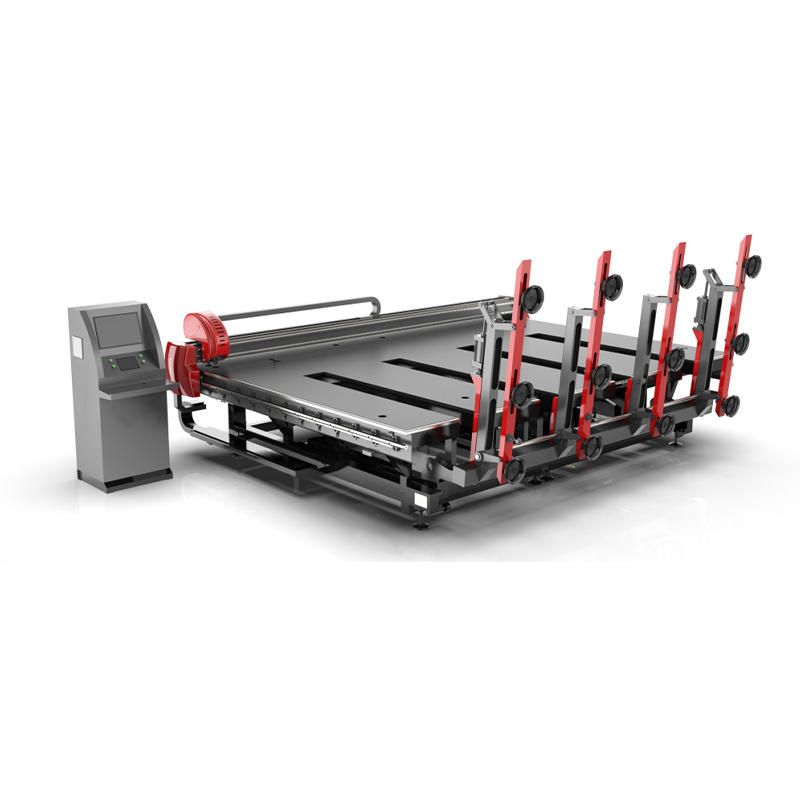

Fully Automatic Glass Loading Table
It is mainly used for automatic glass loading. After putting the glass in the designated position and giving the signal of loading, the big arm turns up about 95 degrees through the overturning mechanism, and the whole machine starts to move forward. When the induction device on the small arm touches the glass, the whole machine stops walking and the glass is sucked by the suction cup through the vacuum system on the glass,small arm lifting motor lifts the glass upward and backward about 80 mm. The walking motor retreats and the big arm falls down. When the bing arm is in place, the suction cup under the glass begins to blow. When the small arm falls down, the glass falls on the conveyor wheel. Finally, the glass is conveyed to the cutting table by the conveyor wheel. * Breaking bar: 1+1 type * Table Size: 9600x2800x900mm * Glass thickness:3-19mm * Power: 4kw * Table height: 900 + 20mm
Main Technical Parameter
|
Item.
|
Spec.
|
|
Max. glass cutting size
|
2800*4200mm
|
|
Glass thickness
|
2-255mm
|
|
Cutting speed(m/min）
|
0-200
|
|
Accurcy(mm/m)
|
≤±0.20
|
|
Breaking bar(pcs）
|
1+2
|
|
Total power
|
3P 380V 50Hz
|
|
Dimension
|
Dimensions :14200x3750x900 ±20mm
|
|
Total weight
|
3700Kgs
|
Relative machines:
Silicone Sealant Sealing Robot
Butyl Extruder Equitment
Aluminum Spacer Bending Machine
Automatic Glass Cutting Machine
Glass Washing Drying Machine
